Radeon RX 9070 Review: A $600 16GB 1440p/4K Powerhouse

When the Radeon RX 9070 debuted, it felt like another “paper launch” – full of promise but mired by steep street prices and questionable availability. AMD’s $549 MSRP was undercut by $700+ tags at launch, so the card’s initial hype? Premature. Fast forward a few months, and the RX 9070 is flirting with $599.99. That mere $50 over MSRP for a 16GB GPU with RDNA 3’s architectural improvements? Suddenly, this upper-mid range contender looks tantalizing.

Table of Contents (15)

Why 16GB Matters in 2024

It’s tempting to fixate on clock speeds and shader counts, but modern games and future titles are VRAM-hungry. AAA open worlds, texture packs, and uncompressed assets routinely push beyond 12GB at 1440p/4K if you dial in Ultra settings. The 12GB on Nvidia’s RTX 5070 or 4070 starts to choke in titles like Alan Wake 2 and Jedi Survivor. In contrast, the RX 9070’s 16GB GDDR6 practically future-proofs mainstream rigs for the next couple of years, especially if you avoid heavy upscaling gimmicks.

Key Specifications at a Glance

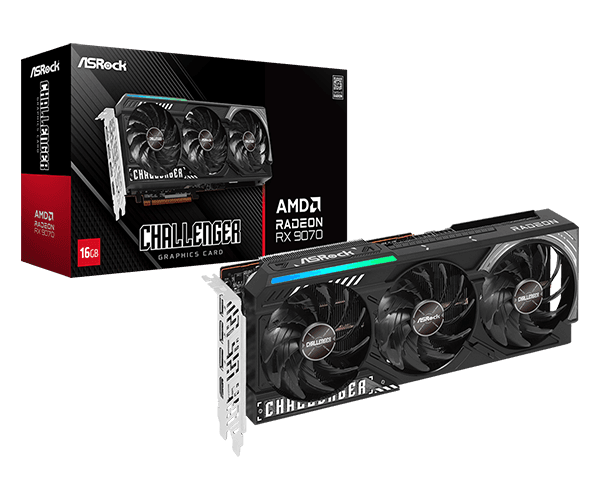

Model	AMD Radeon RX 9070 (ASRock Challenger)
RDNA 3 Compute Units	64 CUs, 4,096 stream processors
VRAM	16GB GDDR6 @ 18 Gbps
Infinity Cache	96MB
Boost Clock	Up to 2,520 MHz
Bus Width	256-bit
TDP	245 W
MSRP	$549 (street ~$599.99)

RDNA 3 Architecture: What’s Under the Hood

RDNA 3 marks a shifting point for AMD, splitting compute and media workloads into distinct engine blocks and introducing AI acceleration cores. You get improved efficiency over RDNA 2, plus hardware-level upscaling with FSR 4.0 that closes the gap with Nvidia’s DLSS. The 96MB Infinity Cache reduces memory latency and power draw, and the 256-bit GDDR6 interface keeps costs in check while still feeding 16GB of VRAM at healthy bandwidth.

Compute & AI

Beyond raw CUs, RDNA 3 brings dedicated AI accelerators. These handle FSR 4.0 and future AMD deep-learning features without overtaxing shaders. In practice, FSR 4.0 on the RX 9070 delivers impressive frame uplifts in GPU-bound scenarios, and the AI blocks leave headroom for multimedia upscaling, real-time encoding, or upcoming ray-tracing enhancements.

Infinity Cache & Memory Subsystem

At 96MB, the Infinity Cache on the RX 9070 offers a sizable low-latency buffer that slashes DRAM calls. That pays dividends in high-resolution gaming, reducing stutters and power draw. Coupled with 18 Gbps GDDR6, you get roughly 576 GB/s effective bandwidth – enough for most AAA at 1440p/4K without breaking the bank.

Pricing Trajectory & Market Context

AMD’s launch strategy mirrored Nvidia’s – MSRP, thin supply, then inflated street pricing. But unlike past cycles, this time cards trickled down faster. US retailers now list ASRock Challenger and PowerColor models around $599–620. Compare that to the RTX 5070’s stubborn $650+ tags, and AMD’s offering starts to look like the smarter buy. Still, stock can fluctuate, so price-watching and digital coupons can net you under $600 if you’re patient.

Real-World Performance: Benchmarks & Frame Rates

We focused on modern, demanding titles at native resolution and with Variable Refresh Rate (VRR) enabled. No synthetic tests, just actual gameplay.

• Cyberpunk 2077 (Ultra, 1440p): 68 fps average, Native RT Off. With FSR 4 Performance preset, 102 fps and negligible artifacting.
• Call of Duty: Modern Warfare III (Ultra, 4K): 58 fps native; ramp to 95 fps with FSR 4 Quality without noticeable blur.
• Forza Horizon 5 (Ultra, 1440p): 112 fps average; 4K cranks to 62 fps native and 99 fps with FSR 4 Performance.
• Hogwarts Legacy (Ultra, 4K): 54 fps raw, 87 fps with FSR 4 Performance. Sharp details hold up nicely.
• Shadow of the Tomb Raider (Ultra, 1440p): 96 fps, showing the benefits of ample VRAM on large texture packs.

In every test, the RX 9070 matched or exceeded the RTX 5070 by 5–15% in raw raster performance, thanks to the extra VRAM and higher Infinity Cache efficiency. Once you factor in FSR 4, AMD narrows any remaining gap in visual fidelity/performance balance.

Thermals, Power Draw & Acoustics

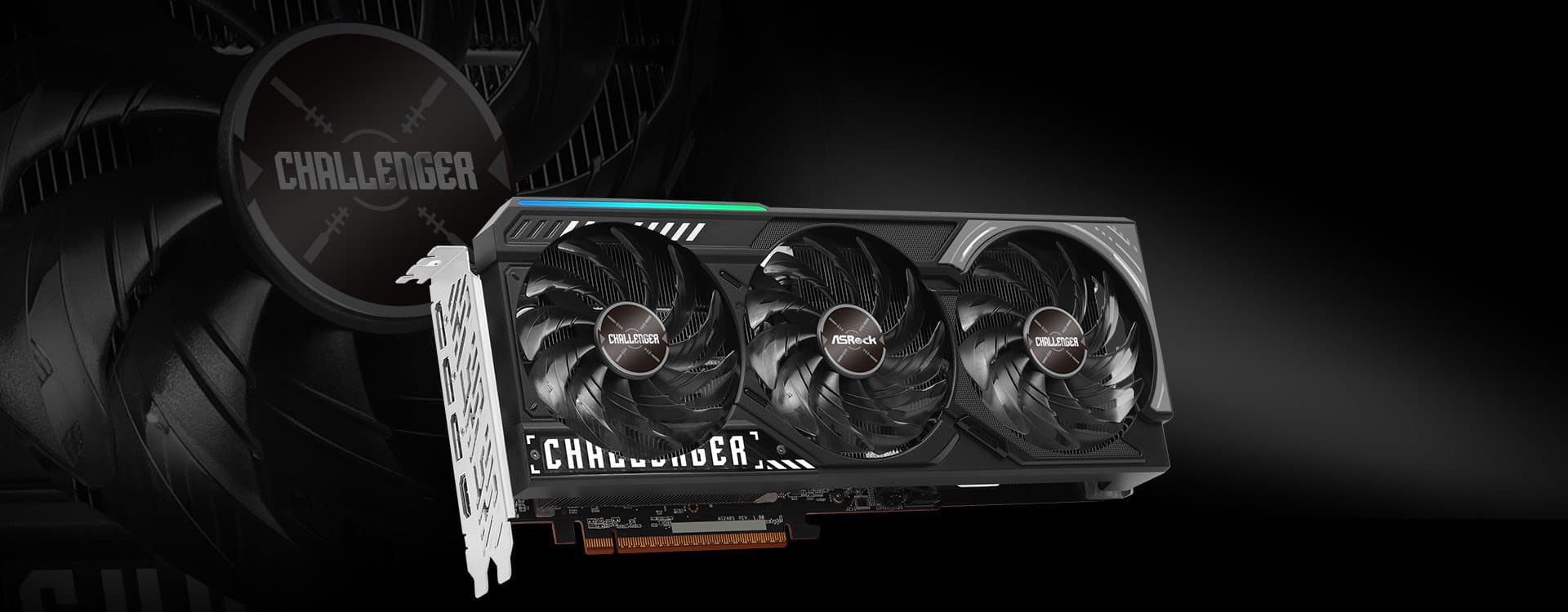

The ASRock Challenger’s triple-fan design keeps peak temps near 72 °C under extended 4K loads, with fans peaking around 41 dB. The 245 W board power is in line with Nvidia’s similarly classed offerings, but RDNA 3’s efficiency and the Infinity Cache mean fewer DRAM power spikes. Overall, expect a robust cooler and modest noise – just don’t plan on whisper-quiet ITX builds.

Overclocking & Tuning Potential

Out of the box, most RX 9070 cards hit 2,520 MHz on the boost clock. Enthusiasts can push core frequencies to ~2,600 MHz with +50 mV and a 15% power limit bump. Memory runs stable at +500 MHz (22 Gbps effective) on most BIOS revisions. That translates to a further 3–5% in frame rates, at the cost of ~20 W extra draw and a few extra decibels of fan noise. Easy gains if you have good case airflow.

Comparisons: RTX 5070 & Other Alternatives

• Nvidia RTX 5070: 12GB VRAM, DLSS 3.5 support, slightly better RT. But $650+ pricing and VRAM limits cap future-proofing at 1440p/4K.
• Nvidia RTX 4060 Ti 16GB: 16GB GDDR6, slower cores, weaker RT. Often <$400, but falls behind in heavy AAA at Ultra.
• AMD RX 7800 XT: 16GB, 235W TDP, similar pricing. Slightly faster in raster but fewer AI/FSR 4 blocks – trades blows with the 9070.
• Previous-gen RX 6800 XT: 16GB, ~$400–450 used. Still solid, but older drivers and no FSR 4 hardware support.

Who Should Buy the RX 9070?

Gamers upgrading from 20-series/30-series entry cards: If you’re coming from an RTX 2060, 3060, or Radeon RX 6600 XT, the jump to 16GB VRAM and RDNA 3 efficiency is night-and-day. High-res Ultra textures finally load smoothly, and you’ll enjoy stable frame rates with minimal upscaling.

4K-curious builders on a budget: Native 4K at 50–60 fps without sacrificing Ultra settings is now within reach for ~$600. FSR 4 makes the rest pleasantly fluid.

Content creators & streamers: With improved media encode blocks and reliable drivers, the RX 9070 handles recording, streaming, and light compute work. If your workflow relies on CUDA-only tools, Nvidia still holds an edge – so double-check plugin compatibility first.

Practical Considerations & Build Tips

• Case clearance: Triple-slot width and ~300 mm length. Ensure 3-slot support in mid-tower builds.
• PSU headroom: Plan for at least a 650 W quality unit to accommodate peak power draws with overhead.
• Airflow: Dual-intake front fans and a top-exhaust fan keep GPU temps under control. Avoid cramped ITX layouts.
• Driver stability: Install the latest Radeon Software Adrenalin Edition to benefit from recent RDNA 3 optimizations and FSR 4 improvements.
